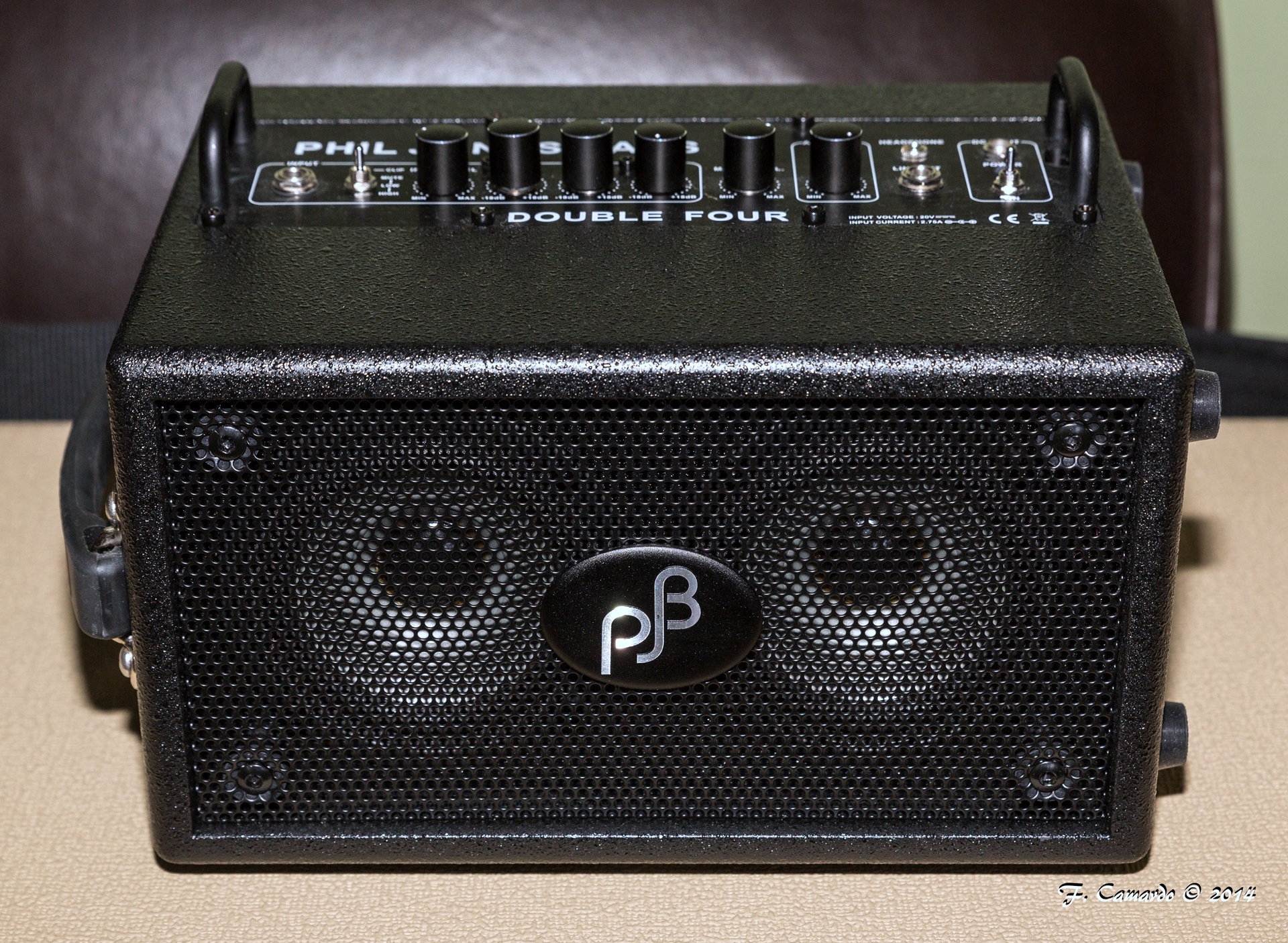

Phil Jones Bass - Double Four - mini amp
The DOUBLE FOUR is a single channel bass amplifier that has an auxiliary input for ipad/ipod, mp3 or drum machine. It features 3 band EQ that is perfectly tailored for bass guitar, headphone out jack and a line out for recording. It is ideal for all kinds of basses and can handle the open B string on a 5 string bass with ease.
The Enclosure
It is well known that big speakers are capable of reproducing true bass fundamental frequencies but as you decrease the physical size of a speaker, the bass response will fall away. Same reason why Violins are small and Double Basses are big!
So how do you get huge bass sound from a small speaker cabinet? Well with our know how of using smaller drivers to get the ultimate bass sound, we applied our vast experience to an even smaller driver just 4 inches across. It is built with Swiss watch precision; it has to be to cope with the extreme signals coming in from an amplified bass guitar. Using our extensive R&D facility which includes the largest anechoic chamber in the bass guitar amplifier industry and the KLIPPEL transducer measurement system (it uses lasers!), we were able to develop the perfect 4 inch loudspeaker. We analyzed the neodymium magnetic system, the cone behavior at all frequencies in 3D representation, cone suspension, frame etc. until we had achieved a transducer beyond what anyone would have ever though possible. Then we looked at the acoustic loading using the acoustic simulation software and calculated exactly the full power cone displacement at every frequency.
We designed a custom Rectangular Auxiliary Low Frequency Radiator (RALFR®). That is a pneumatically coupled radiator loaded to the rear of the two 4 inch speakers that operates at the lowest bass frequencies only. It augments the output of the loudspeakers at frequencies from 30 to 150 Hz. It also reduces the cone excursion of the speakers allowing greater power handling.
The proprietary PJB NeoPower 4-inch speakers are full frequency range to the hig
